Moog | Spectravox Semi-Modular Synthesizer

Sculpt Your Sound with the Moog Spectravox Semi-Modular Analog Spectral Processor!

Meet the latest addition to the Moog semi-modular synth family with the Moog Spectravox analog spectral processor synthesizer, now available at Chicago Synth Exchange! Designed around a 10-band filter bank, the Moog Spectravox lets users create lively drones and colorful tonal sweeps as a standalone synth—or, it can also be used to add resonant depth and psychedelic spectral movement to any external sound! Just hook up a microphone, and the Spectravox becomes a 10-band analog vocoder with innovative integrated filter modulation, expanding the topology of the vocoder and filter bank for extensive sonic exploration.

Moog_Spectravox_Jamie_Lidell_Lifestyle-5.jpg__PID:ea968f11-62db-4e2c-aac2-d5007535d601
Spectravox_Jamie_Lidell_Lifestyle-7.jpg__PID:6e371df0-112f-45d4-a48a-d8423d605804

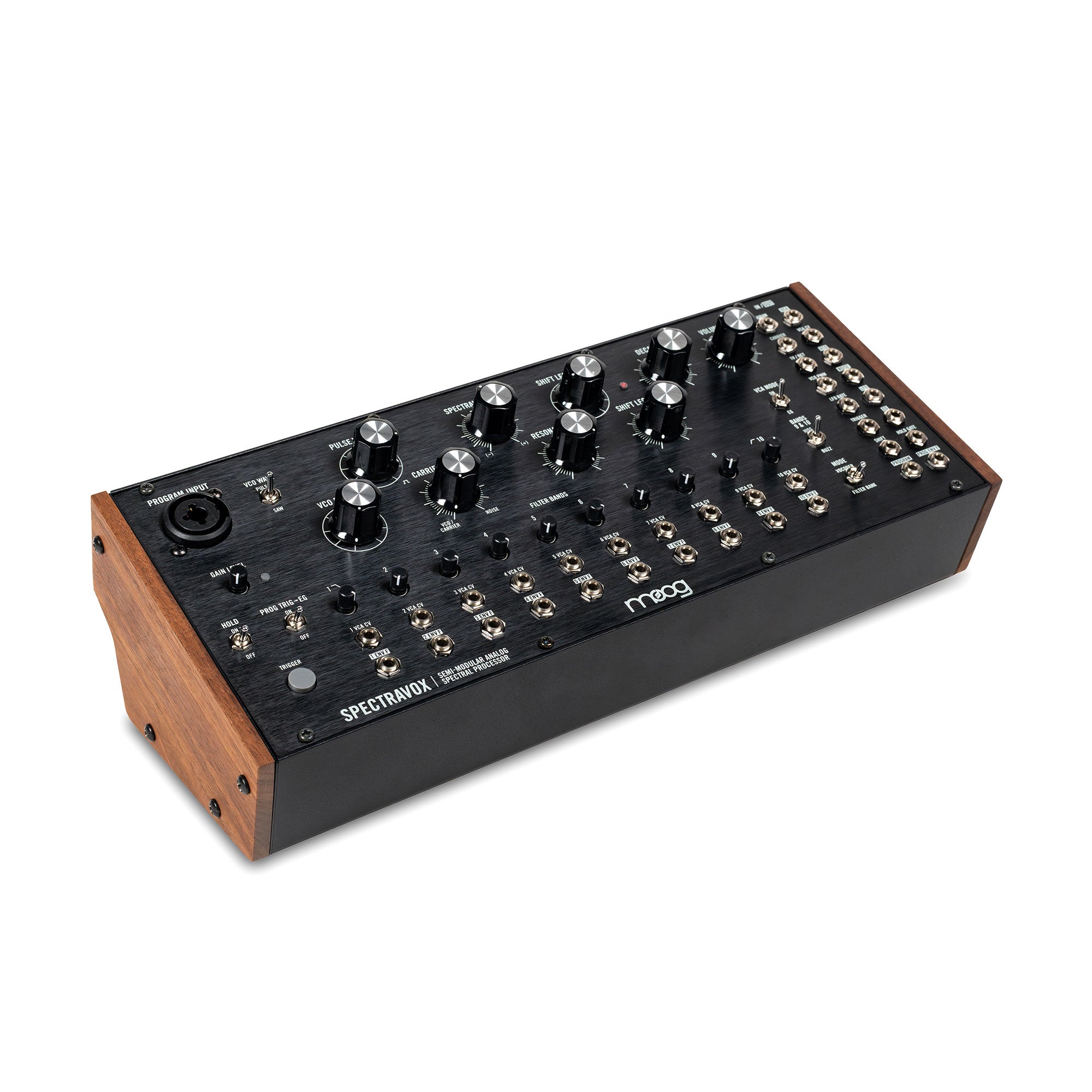

Moog Spectravox Semi-Modular Analog Spectral Processor
Moog Spectravox Semi-Modular Analog Spectral Processor
Moog Spectravox Semi-Modular Analog Spectral Processor
Moog Spectravox Semi-Modular Analog Spectral Processor
Moog Spectravox Semi-Modular Analog Spectral Processor
Moog Spectravox Semi-Modular Analog Spectral Processor

Moog Spectravox Semi-Modular Analog Spectral Processor

$599.00

Spectravox, the newest member of the Moog semi-modular family, is a groundbreaking tool for sculpting sound. An analog spectral processor based around a 10-band filter bank, Spectravox creates lively drones and colorful tonal sweeps on its own and adds resonant depth and psychedelic spectral movement to any external sound. Hook up a microphone and Spectravox becomes a 10-band analog vocoder with innovative integrated modulation of all of its filters. An exploration and expansion of the topology of the vocoder and filter bank, Spectravox is a highly flexible instrument and signal processor with a comprehensive patch bay for integration into studios of all sizes.

Synthesists have delighted in playing with the spectrum of sound since the Moog 907 Fixed Filter Bank appeared in the 1960s, creating lush vowel tones and multicolored timbral animation with hands-on level control of each frequency band of a sound. Unlike earlier fixed filter banks, however, the unique filters of Spectravox are no longer fixed in place and will jointly shift around the frequency space, allowing for the creation of otherworldly voltage-controlled spectral animation and vibrant phaser-like sweeps. With 10 filters whose variable resonance can morph from soft precision to shimmering choral effects, Spectravox reshapes the sounds you love into surprising new forms and brings a new world of sonic possibilities to your studio.

Spectravox is a fascinating standalone sculptable synthesizer voice thanks to its built-in carrier sound source of a thick analog Moog oscillator and white noise generator. With its combo XLR/jack program input, Spectravox becomes a fully featured 10-band vocoder with a secondary filter bank for analyzing the spectral makeup of incoming sounds. In VOCODER mode its 10 analysis filters map the timbral characteristics of any external sound onto any other sound you can imagine. Shape the warm analog oscillator of Spectravox with the dynamics of your voice, or use a drum machine to animate guitar chords in a mesmerizing broadband percussive space.

Spectravox uses the pioneering vocoding work of Bob Moog and Wendy Carlos in the late 1960s as its inspiration—work which was based on Homer Dudley's original designs from the 1930s and which was used to prominent effect in Stanley Kubrick's 1972 film A Clockwork Orange. Innovating further from these early designs, Spectravox uses 10 state-variable filters for its filter bank, all 10 of which are capable of being shifted with its internal triangle wave LFO or external control voltage. With the ability to emphasize vowel sounds via the Hiss and Buzz functionality of the Moog 16 Channel Vocoder, Spectravox is both a major step forward for analog filter banks and a loving exploration of early music technology history.

Scramble the frequency spectrum and create wonderfully unpredictable textures with patch points for each filter in the filter bank and included patch cables. Add analog warmth and subtle phasing to digital synthesizers and sound sources. Integrate Spectravox with other Moog semi-modular instruments or Eurorack modules with an extensive patch bay providing control over almost all of its parameters. Spectravox is a boundary-pushing instrument that invites you to explore creative new ways of shaping and sculpting sound.

Analog Sound Engine

  • Sound Source: VCO, White Noise Generator
  • Filter: 10x variable resonance voltage-controlled filters: 1 Low-Pass
    Filter, 8 Bandpass Filters, 1 High-pass Filters
  • Envelope: VCA EG (Decay)

Analysis Engine Sources

  • Sources: Ext. Input via 1/4" / XLR combo jack or 3.5mm jack with preamplifier.
  • XLR input supports dynamic mics. Condenser mics may require external 48V power.

Patchbay

  • Jacks: 36 x 3.5mm
  • Inputs: 19 Input Jacks
  • Outputs: 17 Output Jacks

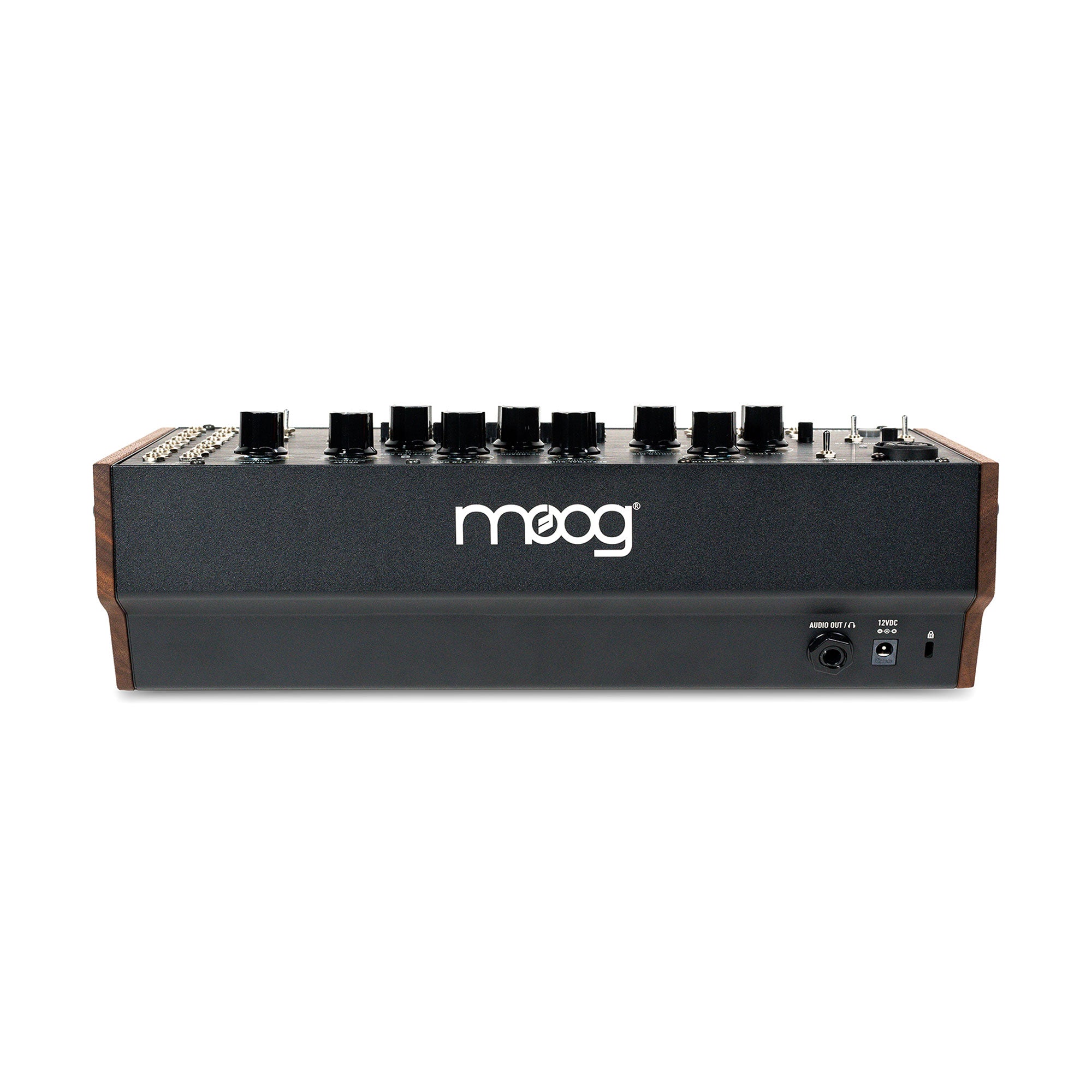

Rear Panel

  • Audio: 1⁄4” TRS Headphone or 1⁄4” TS Instrument
  • Power: Power supply connection
  • Security: Kensington lock slot

Power Supply (Included)

  • Power Supply: Style: wall adapter; barrel connection; center-pin positive
  • Input: 100 - 240VAC; 50 Hz - 60 Hz
  • Output: +12VDC; 2.0A

Power Consumption

  • Typical: 4.8 Watts

Eurorack Specs

  • Current Draw: 450mA (maximum) from +12VDC (10-pin header)
  • Mounting Dims: 60HP (1.5” Module Depth)

IN THE BOX

  • Spectravox Analog Synthesizer
  • Power Supply
  • Quickstart Guide
  • Product Poster
  • Preset Overlays
  • Patch Cables (5x 12")
View Details

Sculpt the Topology of Your Soundscapes with the Moog Spectravox


Since the Moog 907 Fixed Filter Bank appeared in the 1960s, synthesists have delighted in playing with the spectrum of sound, creating lush vowel tones and multicolored timbral animation with hands-on level control of each frequency band of a sound. Inspired by the pioneering vocoding work of Bob Moog and Wendy Carlos in the late 1960s—which was based on Homer Dudley's original designs from the 1930s and later used to prominent effect in Stanley Kubrick's 1972 film A Clockwork Orange—the Spectravox comes with a comprehensive patch bay, making it easy to integrate this highly flexible instrument and signal processor into studio rigs of any size.

Unlike earlier fixed filter banks, the unique filters of the Spectravox are no longer fixed in place, but rather will jointly shift around the frequency space, letting users create otherworldly voltage-controlled spectral animation and vibrant phaser-like sweeps. Equipped with 10 filters, each with a variable resonance that can morph from soft precision to shimmering choral effects, the Spectravox lets users reshape the sounds they love into surprising new forms, bringing a new level of sonic possibilities to any studio.

Plus, with its combo XLR/jack program input, the Spectravox can be used as a fully featured 10-band vocoder with a secondary filter bank for analyzing the spectral makeup of incoming sounds. Using Vocoder mode, its 10 analysis filters map the timbral characteristics of any external sound onto any other sound imaginable. Use the Spectravox to scramble the frequency spectrum and create wonderfully unpredictable textures with patch points for each filter in the filter bank and included patch cables. Or, add analog warmth and subtle phasing to digital synthesizers and sound sources. Or, integrate the Spectravox with other Moog semi-modular instruments or Eurorack modules, using its extensive patch bay that lets users control virtually all its parameters.

Spectravox Angle 4.jpg__PID:1df0112f-35d4-448a-9842-3d605804ad0d
Spectravox Angle 2.jpg__PID:112f35d4-e48a-4842-bd60-5804ad0d4d1d

Sculpt the topology of your soundscapes in creative new ways with the new Moog Spectravox semi-modular analog synth. Call the Synth Exchange, chat with us online, or visit our showroom today to learn more!

SHOP MOOG SYNTHESIZERS

SHOP MOOG SYNTHESIZERS

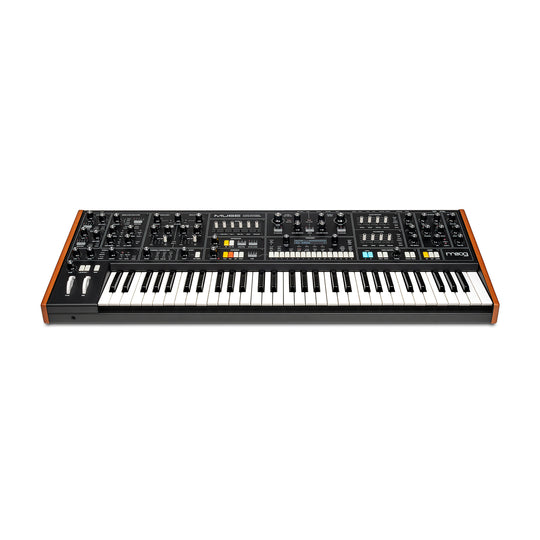

Moog Muse 8-Voice Polyphonic Analog Synthesizer
Moog Muse 8-Voice Polyphonic Analog Synthesizer
Moog Muse 8-Voice Polyphonic Analog Synthesizer
Moog Muse 8-Voice Polyphonic Analog Synthesizer

Moog Muse 8-Voice Polyphonic Analog Synthesizer

$3,499.00

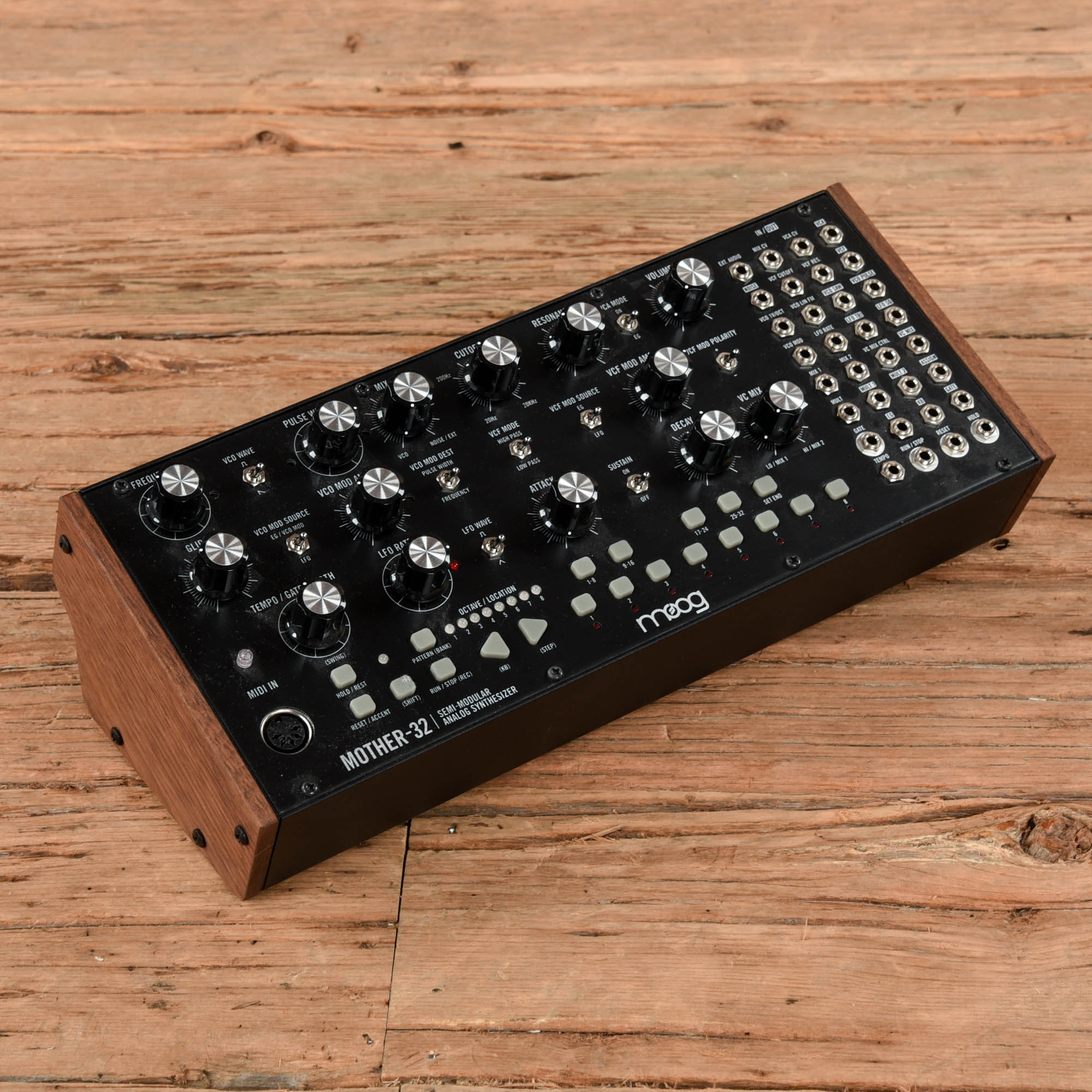

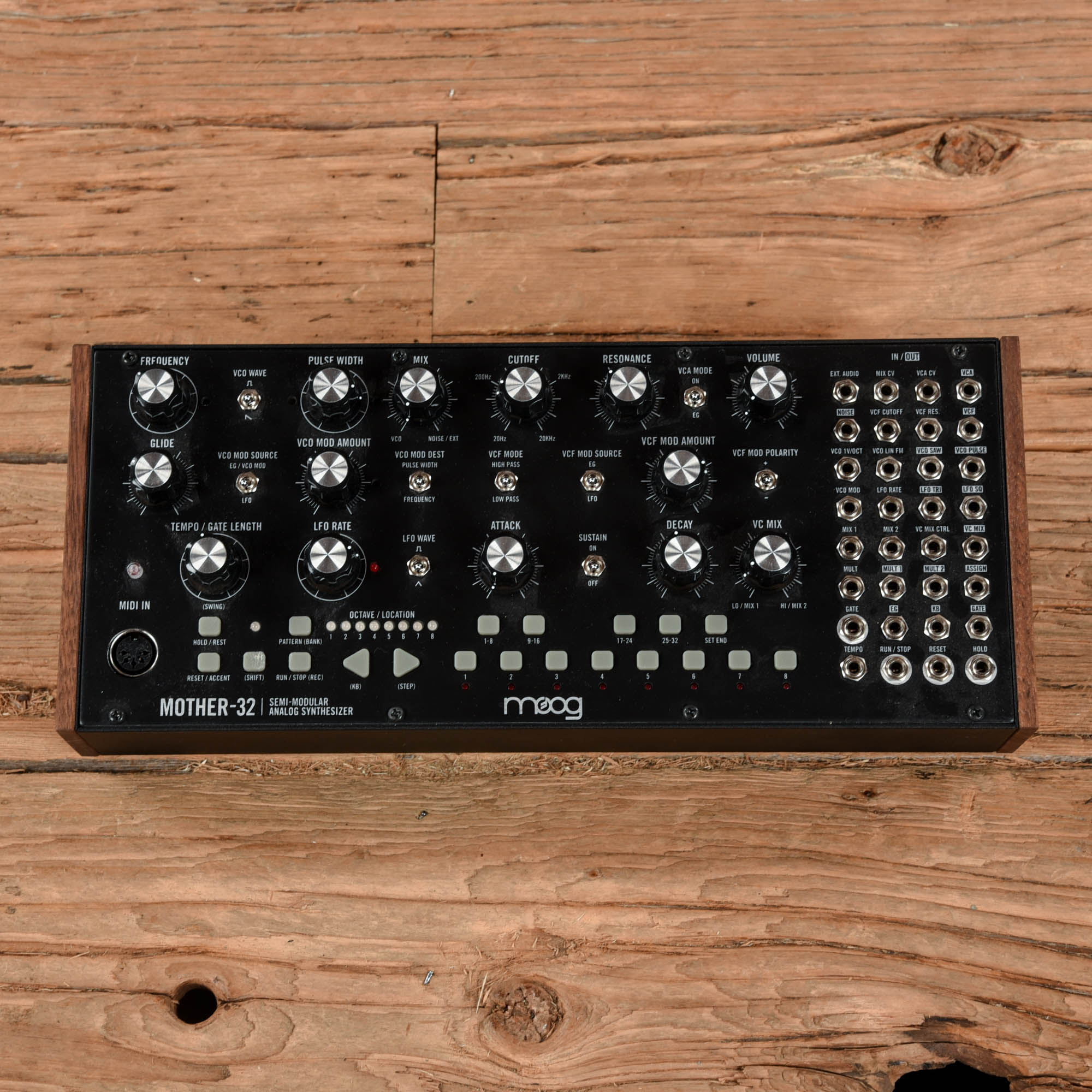

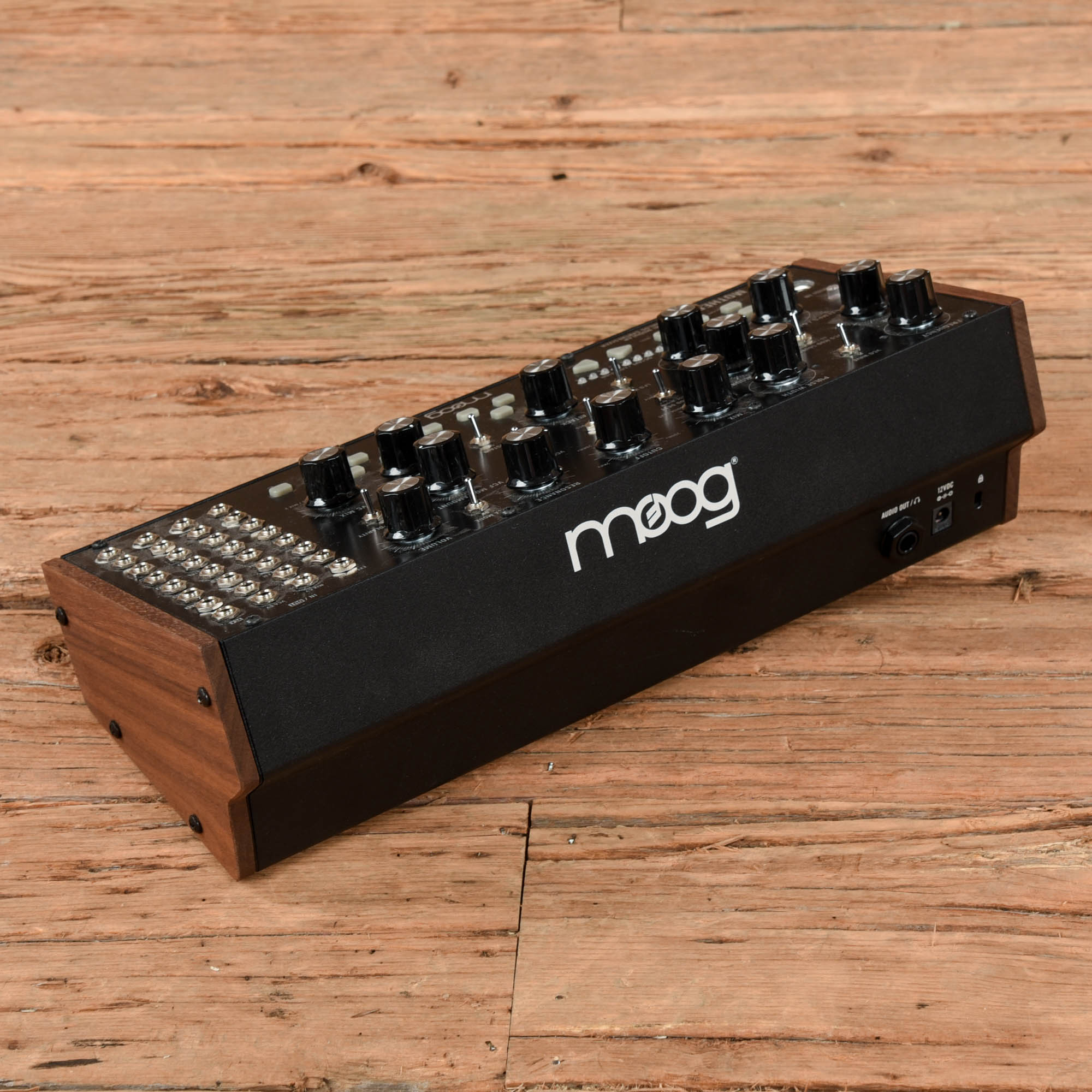

Moog Mother-32 Tabletop Semi-Modular Synthesizer
Moog Mother-32 Tabletop Semi-Modular Synthesizer
Moog Mother-32 Tabletop Semi-Modular Synthesizer
Moog Mother-32 Tabletop Semi-Modular Synthesizer

Moog Mother-32 Tabletop Semi-Modular Synthesizer

$395.00

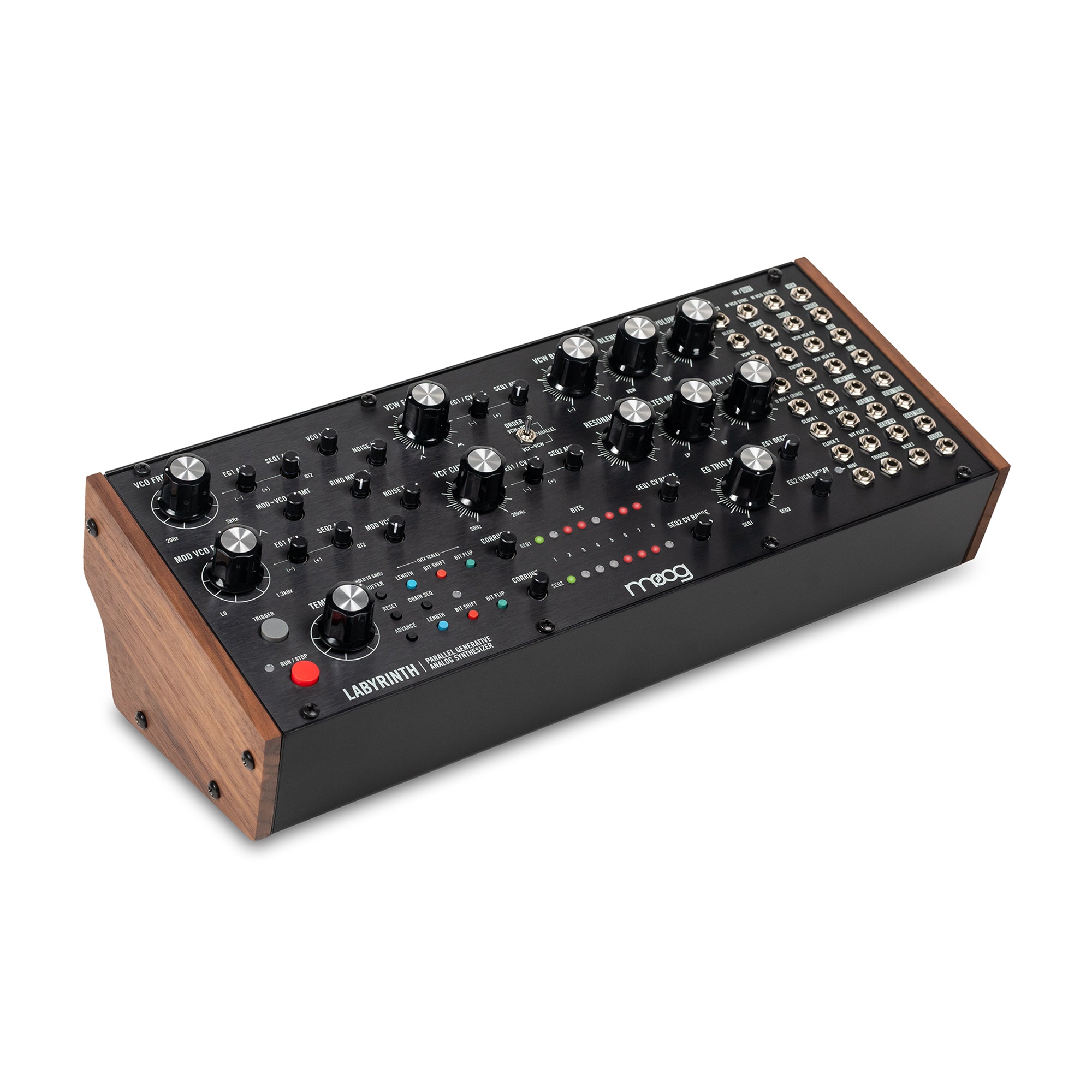

Moog Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
Moog Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
Moog Labyrinth Semi-Modular Parallel Generative Analog Synthesizer
Moog Labyrinth Semi-Modular Parallel Generative Analog Synthesizer

Moog Labyrinth Semi-Modular Parallel Generative Analog Synthesizer

$599.00

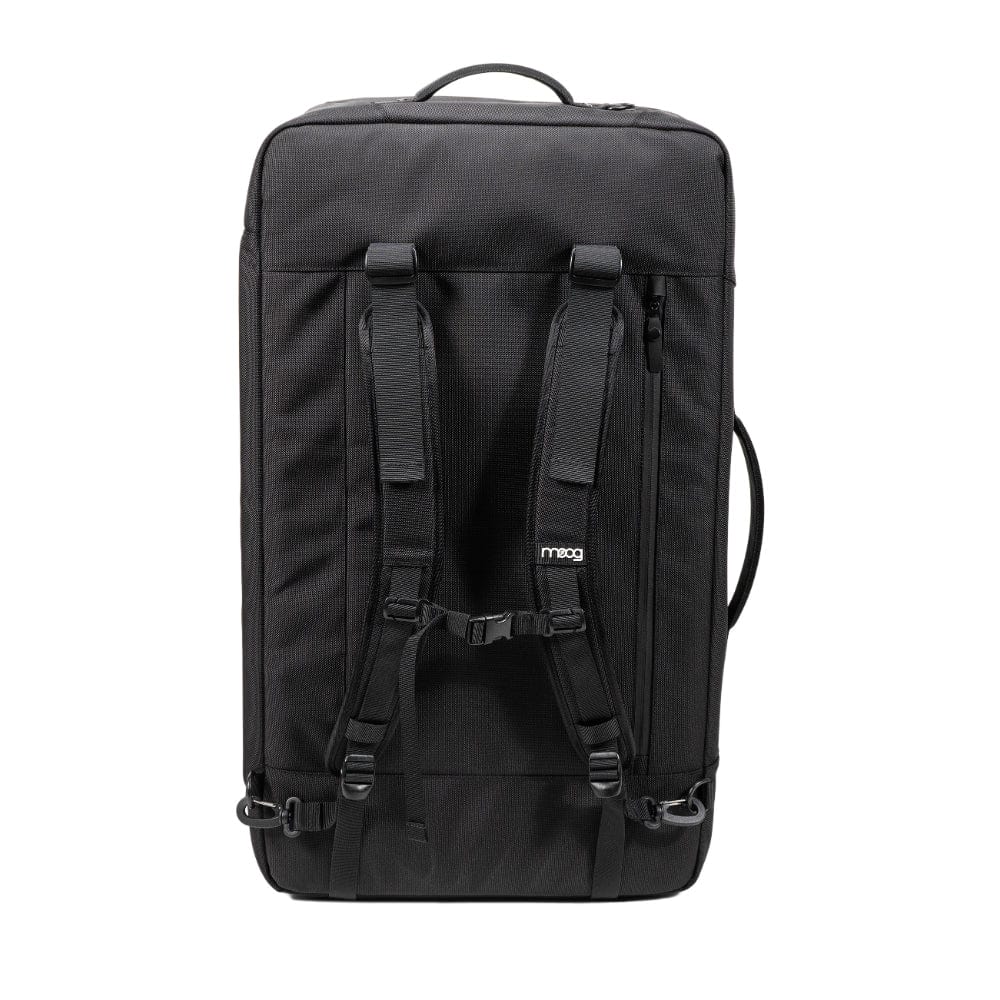

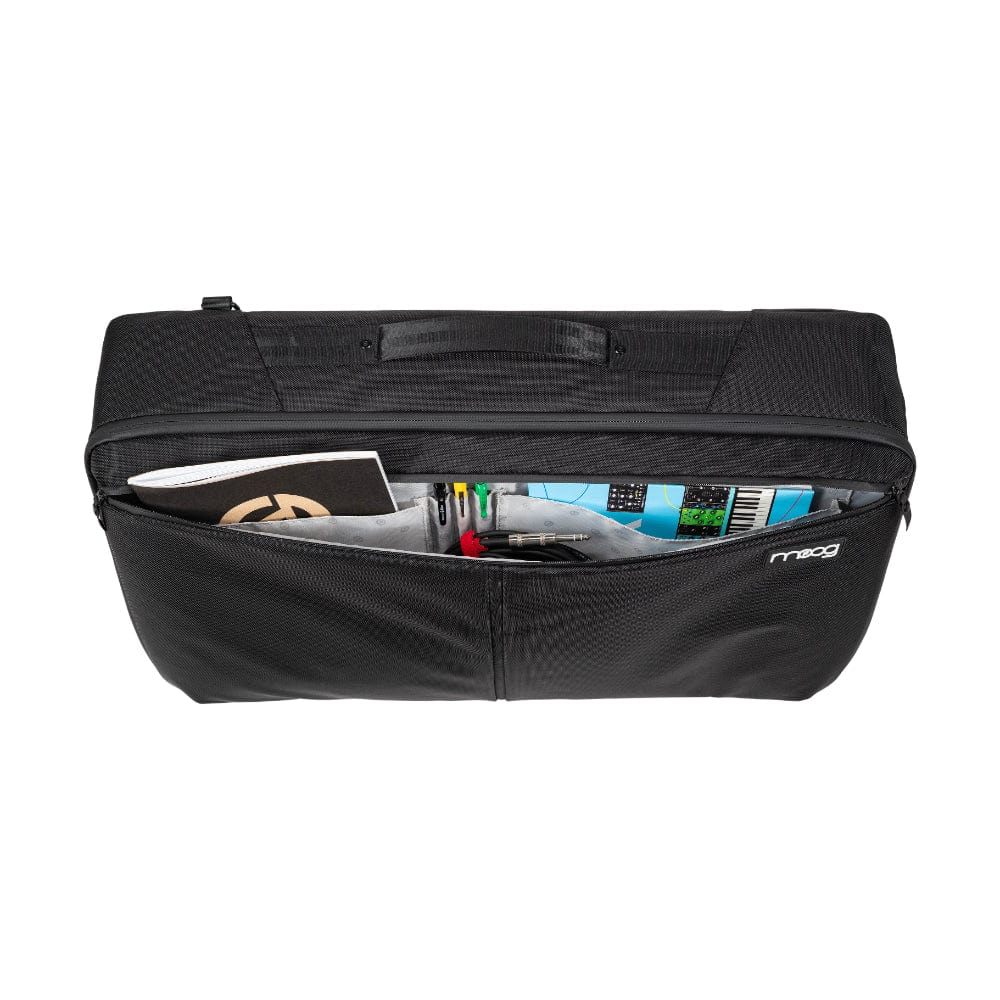

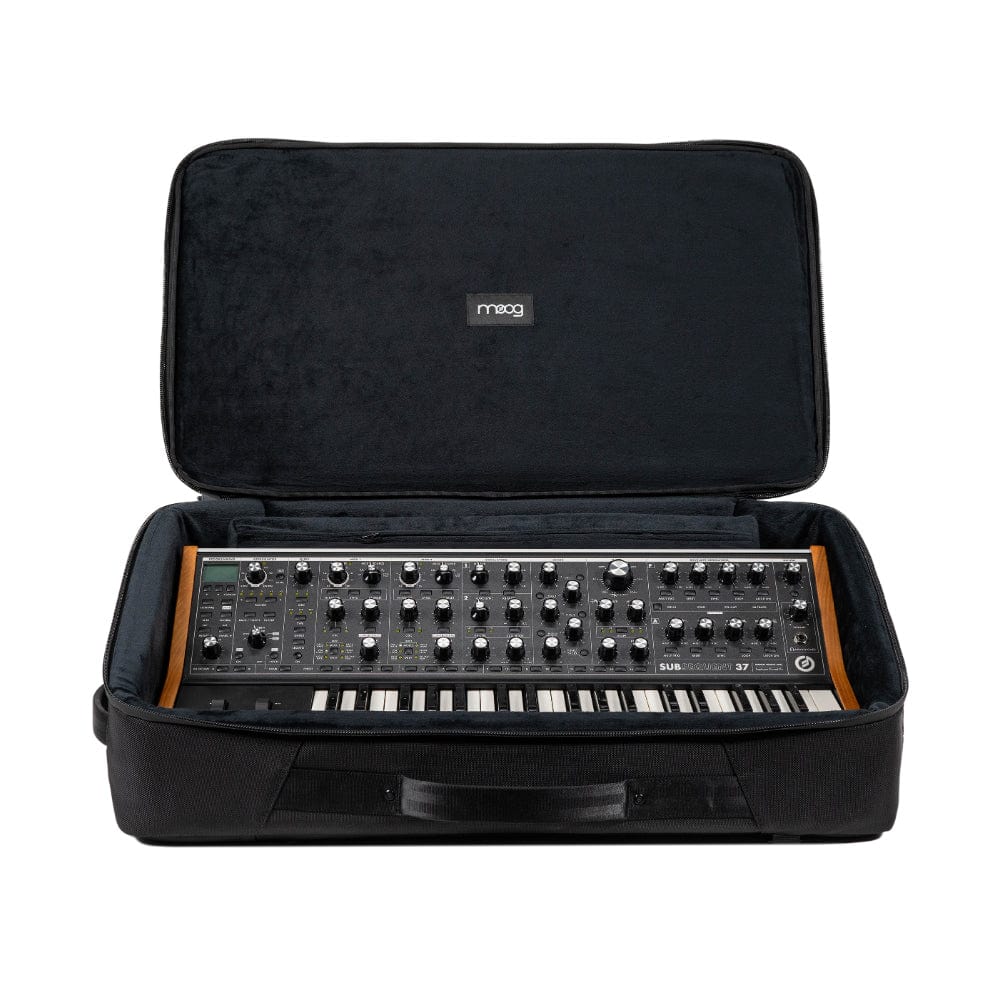

Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases
Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases
Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases
Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases
Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases
Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases
Moog Subsequent 37 SR Case Keyboards and Synths / Keyboard Accessories / Cases

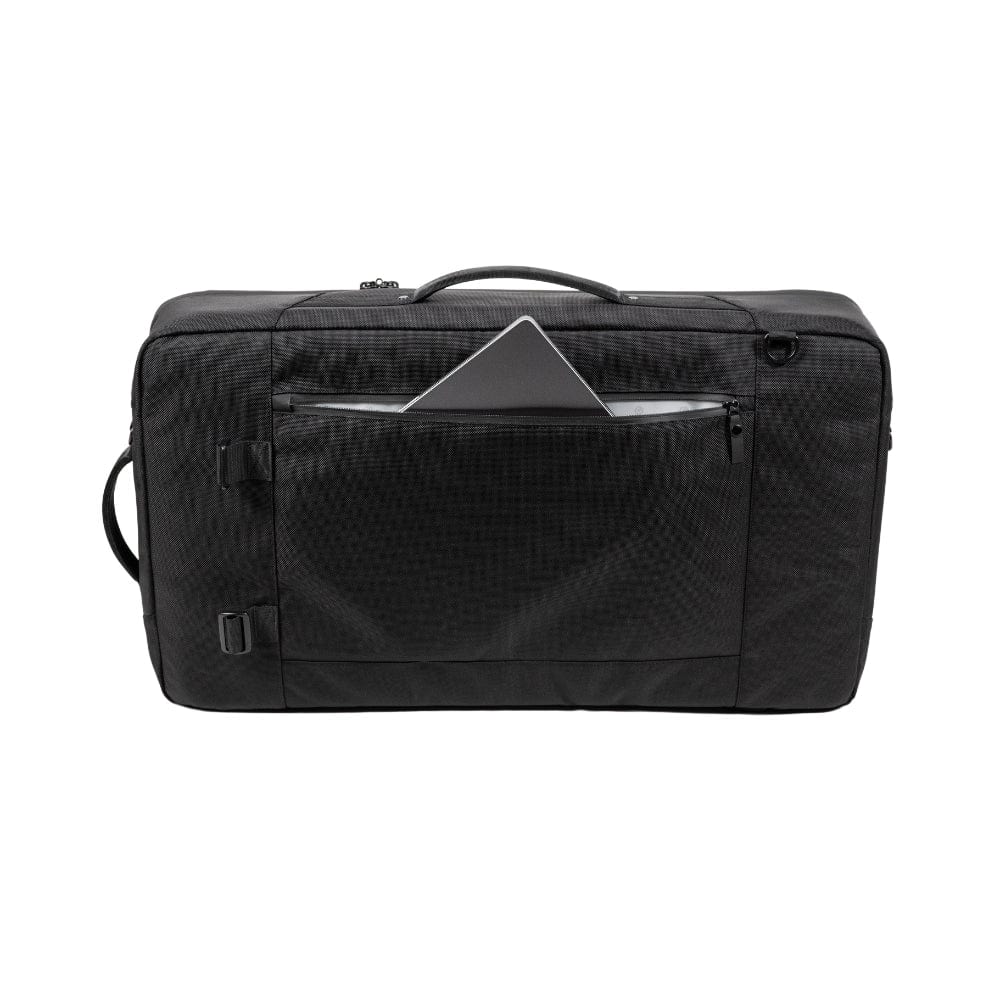

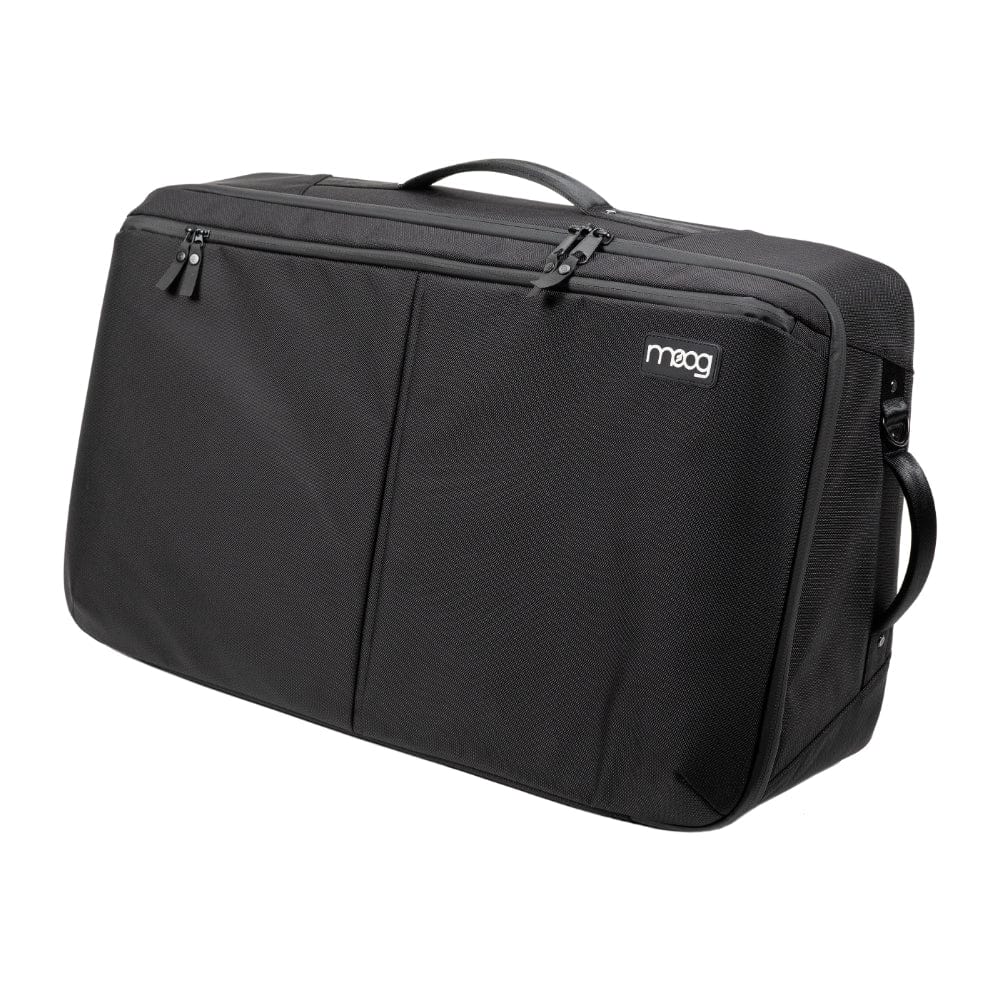

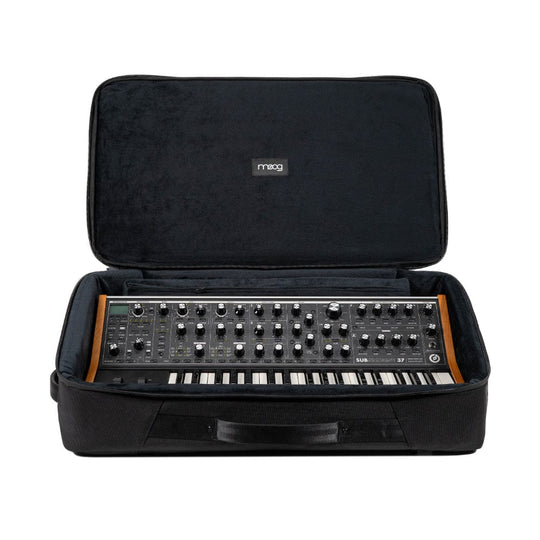

Moog Subsequent 37 SR Case
